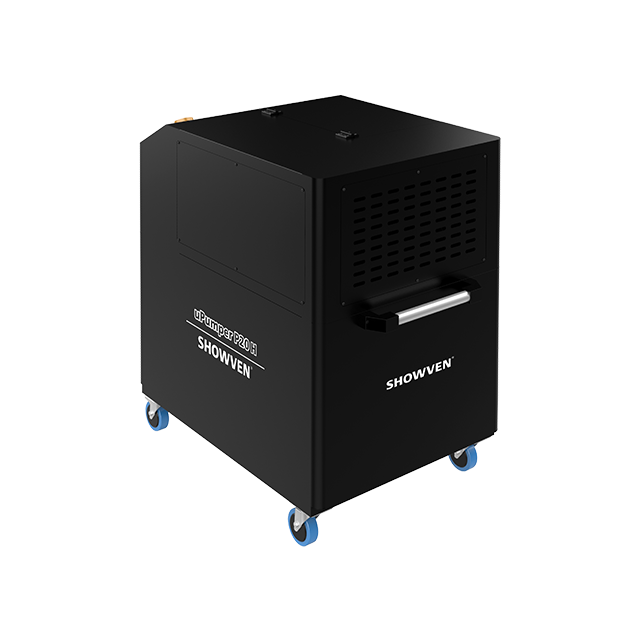

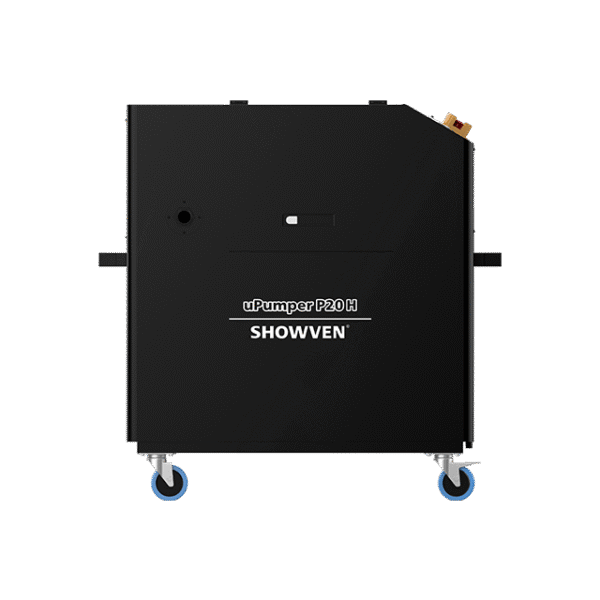

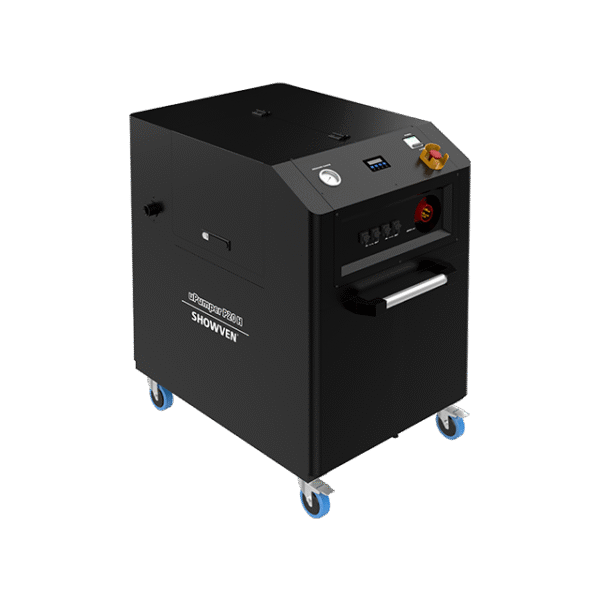

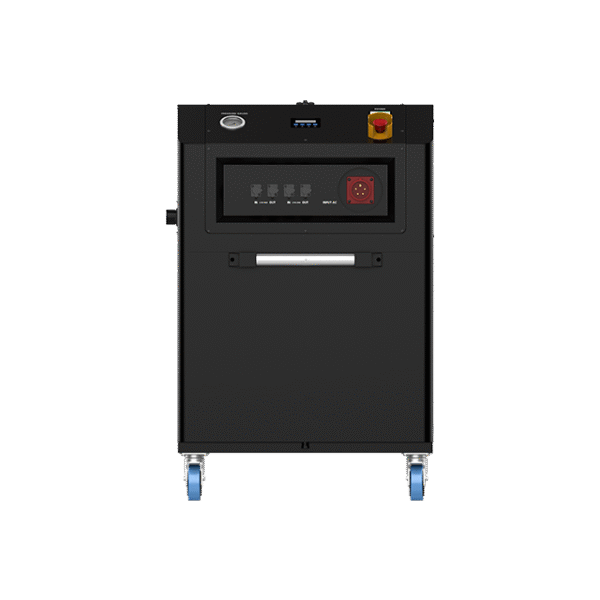

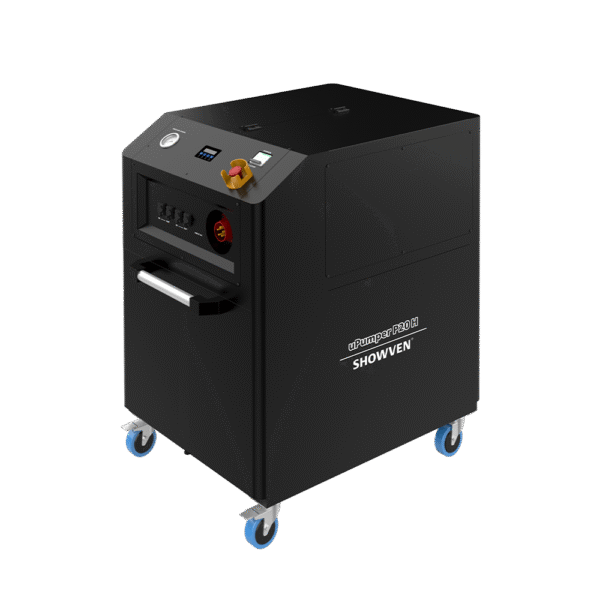

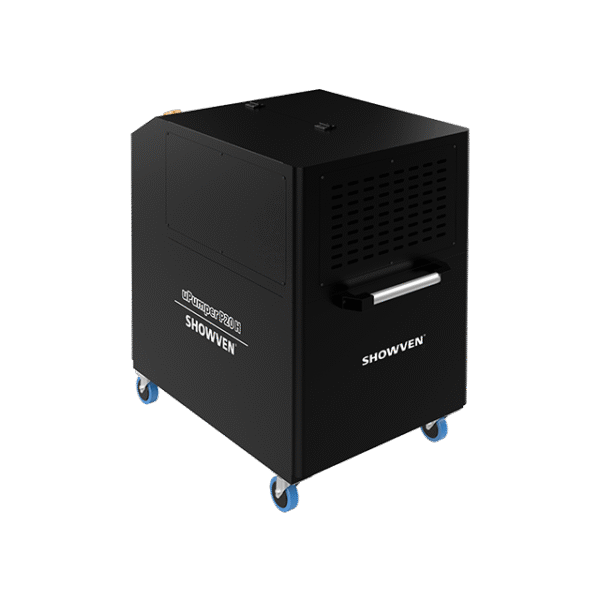

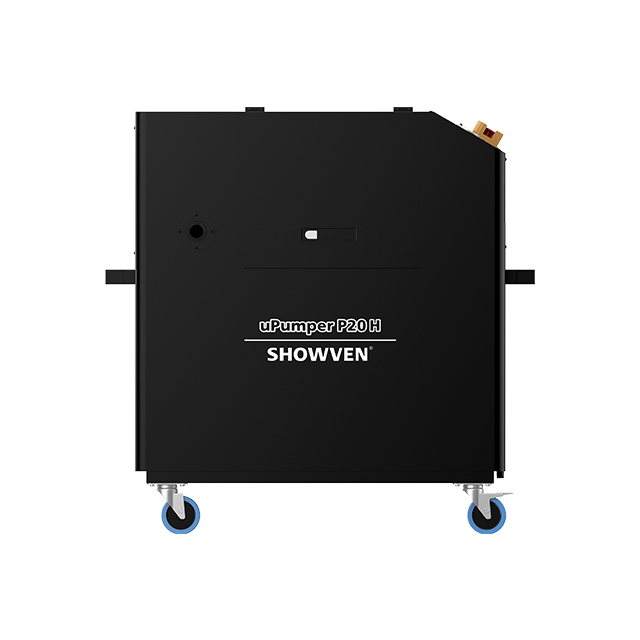

Pump Station – uPumper® P20H
Pump Station – uPumper® P20H
The SHOWVEN® 18m FLAME SYSTEM is a hydraulic-based flame effect solution designed for project or truss-mounted installations. It includes the X20 flame head, P20H pump station, accumulator module, and essential accessories like hoses and cables. With remote fuel supply via the pump station and no nitrogen tank required, it delivers powerful, reliable flame effects ideal for large-scale professional applications.
Specifications
Specifications:
- Dimension: 1100×736×1095 mm
- Weight: 285kg
- Housing material: 304 stainless steel
- VOLTAGE: AC 380V
- Work power: 10KW
- Tank capacity: 250L
- Pump output: 110L/min
- Supported X20 heads: 2-3 heads
- Work TEMP.: -20 – 50℃
- Installation suggestions: The horizontal distance between the flame head and P20H is recommended to be within 200m, and the vertical height is recommended to be within 30 meters (can be customized according to the actual situation)
