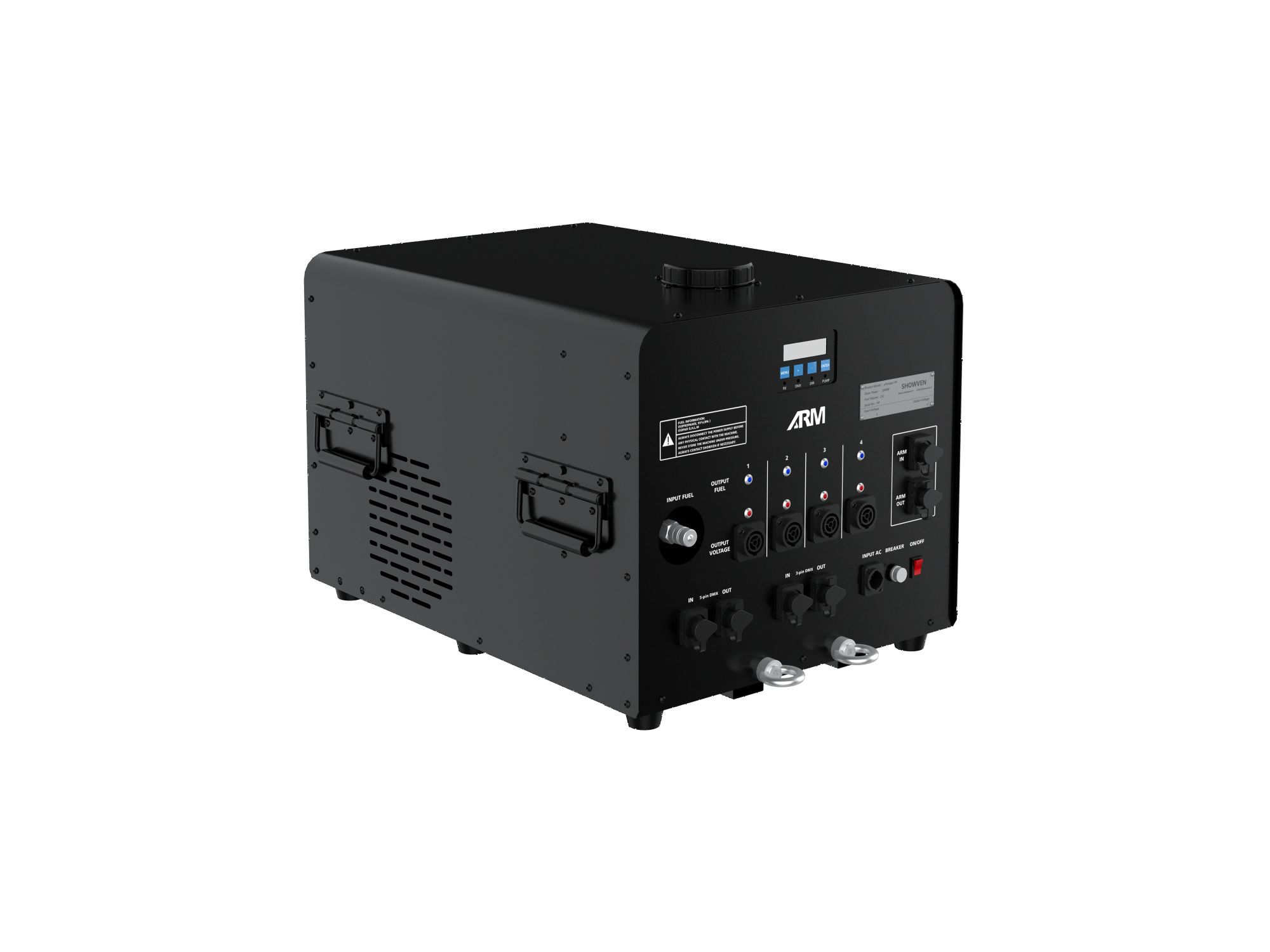

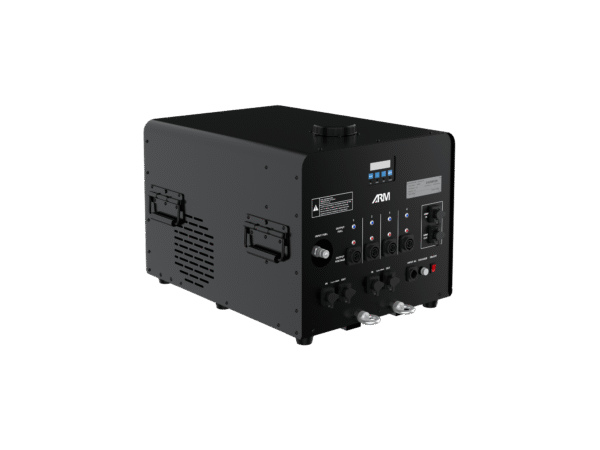

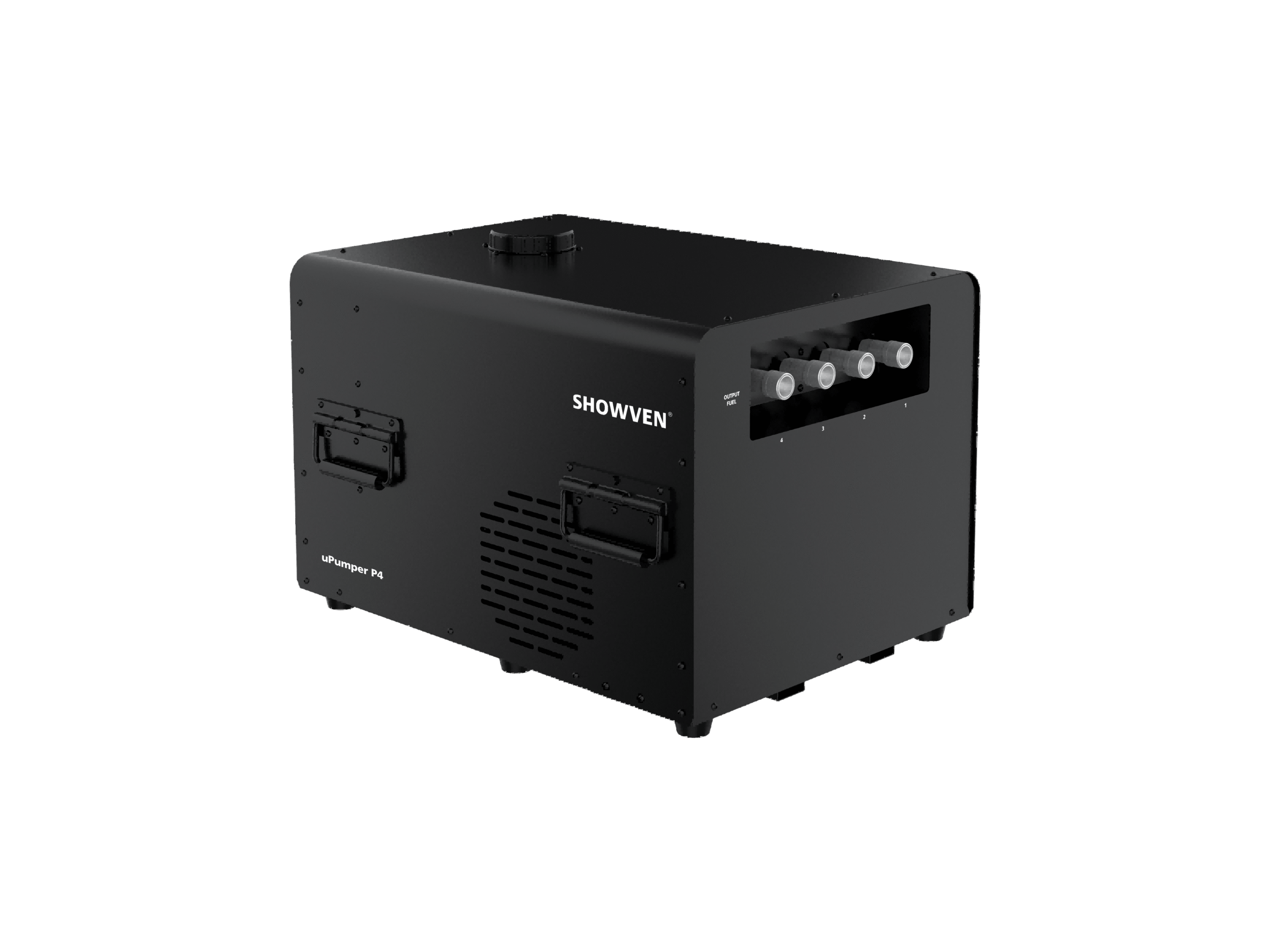

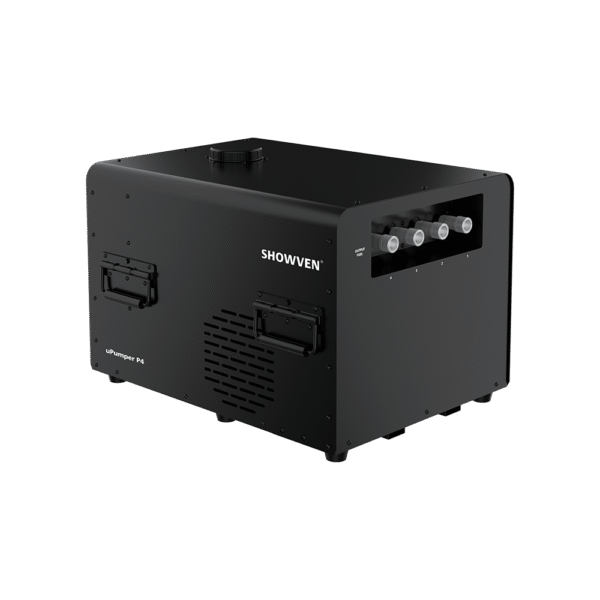

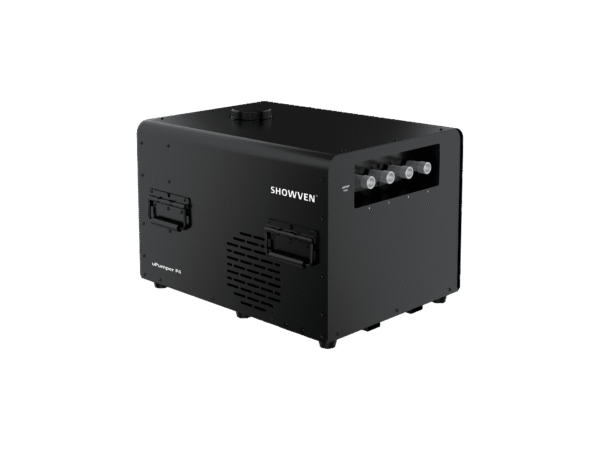

Pump Station – uPumper® P4
Pump Station – uPumper® P4
SHOWVEN FLAME SYSTEM is a hydraulic-based flame effect solution for project or truss-mounted installations. It includes a flame head, pump station, control box, and accessories like hoses and cables. With remote fuel supply and no nitrogen tank required, it offers flexible installation angles for creative designs. The uPumper® P4 supports up to four uFlamer® X1800 or PF10 units.
Specifications
Specifications:
- Dimension：580 x 420 x 460 mm
- Net Weight：48 kg
- Housing material：304 stainless steel
- Input：AC200-240V / AC100-120V, 50-60Hz
- Work power：1800W
- Tank Capacity：32L
- Max. supported Flame heads：4 heads
- Pump Output：15L/min
- Support Fuel：ISOPAR
- Working Mode：Pressurize / Fueling
- Compatible Flame Head：PF10 / X1800
