PyroSlave
PyroSlave

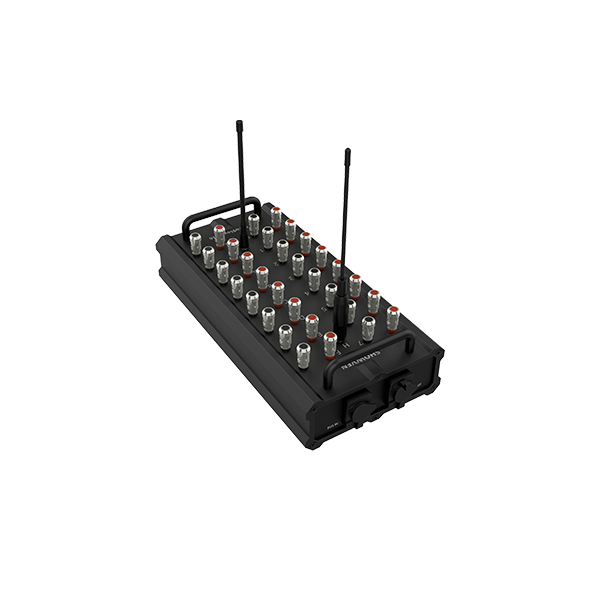

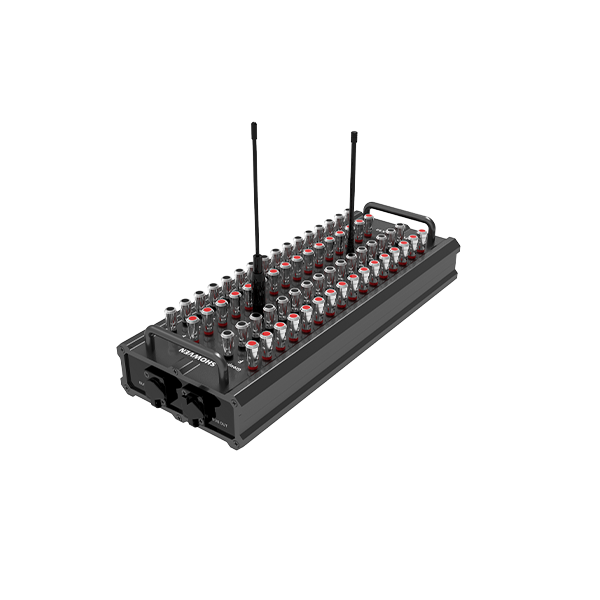

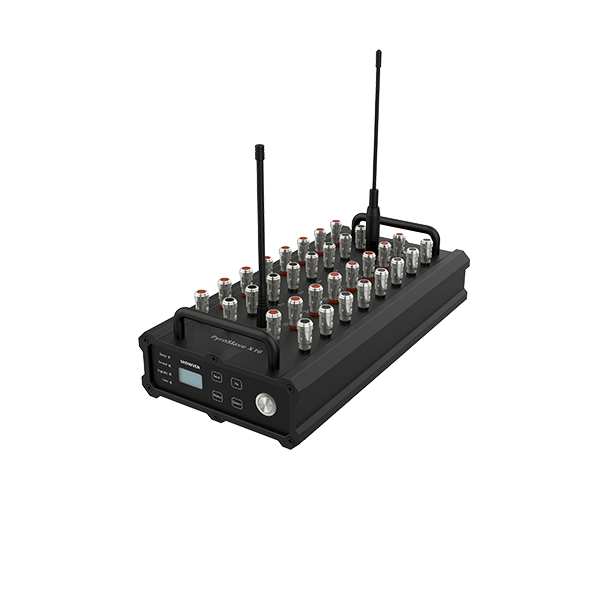

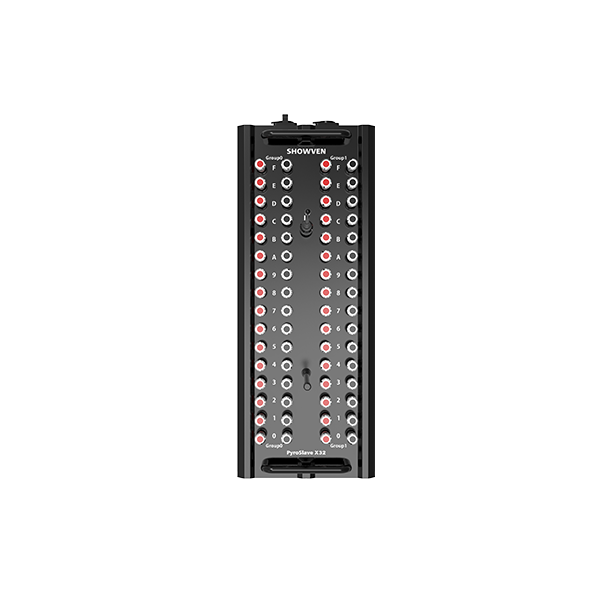

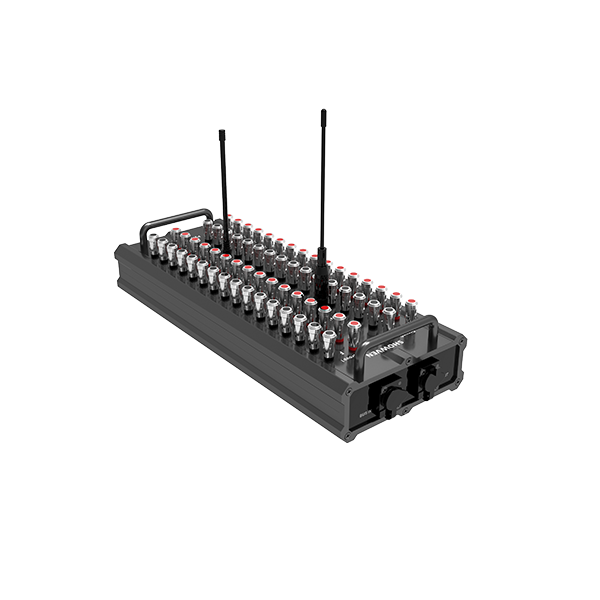

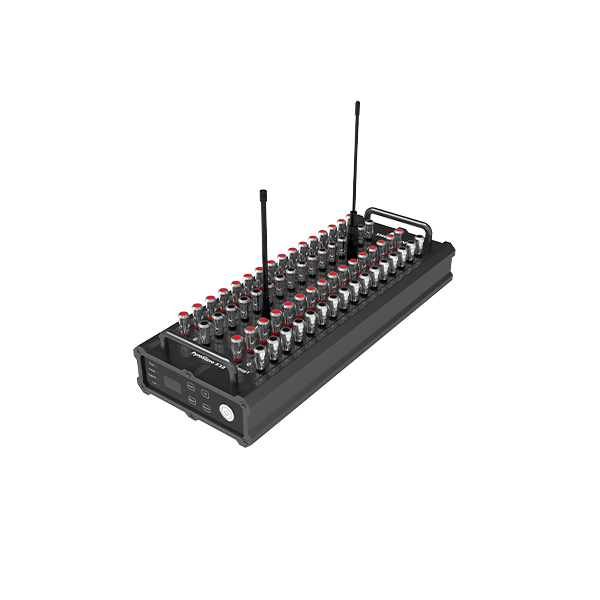

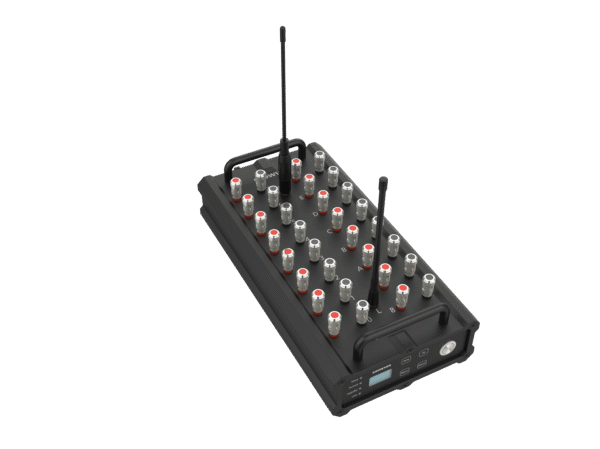

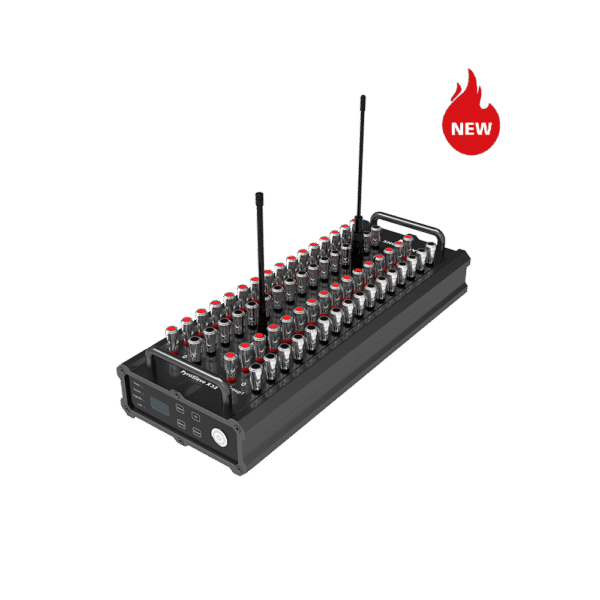

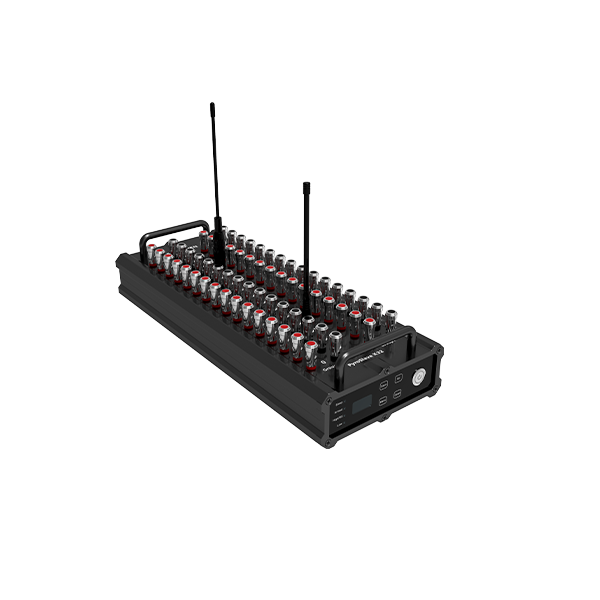

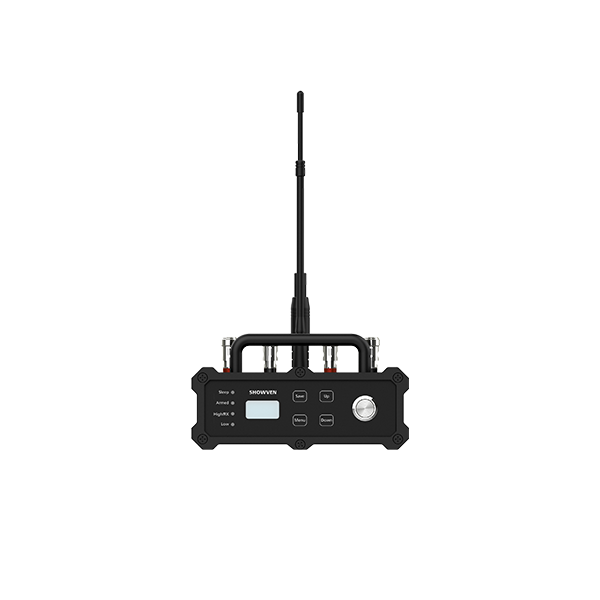

PyroSlave is a serial fireworks igniter designed for pyro technicians and stage effects professionals. Built with durable aluminum housing, touch keys, and metal terminals, it supports wired and wireless operation. Dual-band antennas prevent interference in wireless mode, while 2-wire PBUS enables power and communication over a single cable. Available in two models: X16 and X32.
Specifications
Specifications:
- Dimension: X16: 335 x 165 x 85 mm;X32: 425 x 165 x 85 mm
- X16: 3 kg;X32: 4.1kg
- X16: 16;X32: 32
- Trigger Indicate: LCD display and record
- Address: 256 (00 to FF)
- Control: Dual-band wireless, 2-wire PBUS (communication + charging)
- Wireless Range: 600m
- Wired Range: 2000m
- Firing Voltage: 24V
- Firing Current: 5A
- Firing Duration: 500ms
- Resistance Test: Yes
- Battary: Support 4 * 18650 cell, 4.2V, 2500mAh per piece (battery not included)
- Operation Time: 60h, sleep mode 2 weeks; Wired mode: non-stop

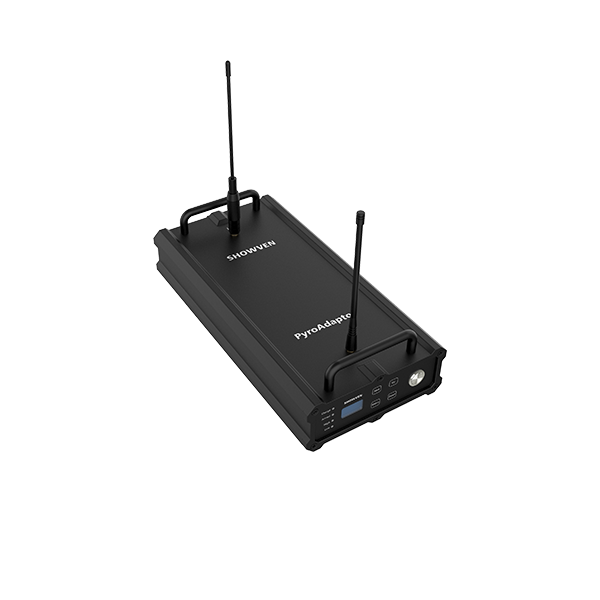

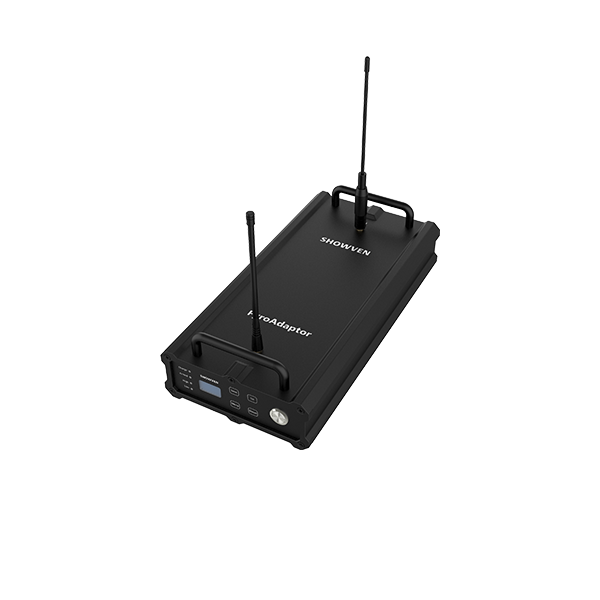

- Charging Control: Max. 25 units PyroSlave per PyroAdaptor
- Wired Communication: Max. 64 units PyroSlave per PyroAdaptor
- Charging Time: Appr. 6h
- Waterproof Level: IP65
- Minimum Firing Interval: 10ms
