SHOWVEN LASER-Maiman15

SHOWVEN LASER-Maiman15

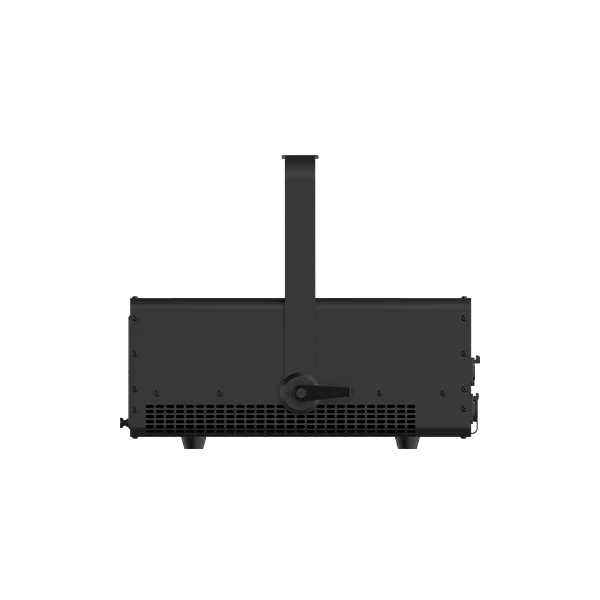

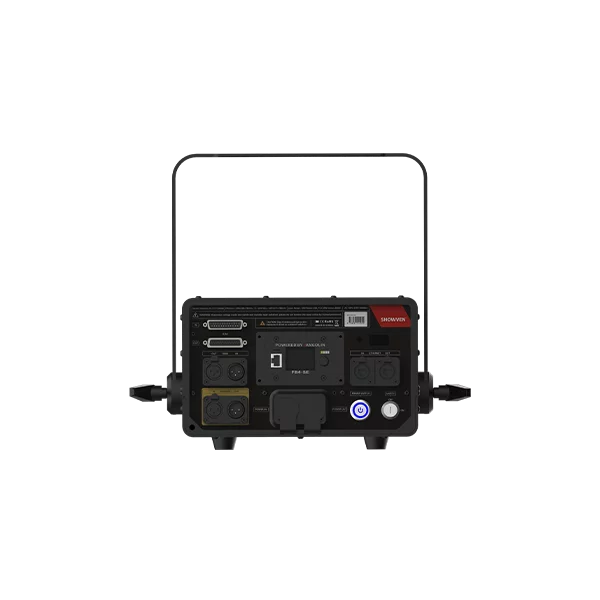

SHOWVEN Maiman 15 is a high-power full-colour RGB laser built on the Maiman platform, featuring a robust double-layer structure and IP65-rated enclosure for reliable outdoor performance. Integrated with key safety features—safety switch key, remote E-stop, and scan-fail protection—it ensures safe and precise laser control. Ideal for large-scale professional shows and demanding outdoor laser applications.

Categories: ,

Specifications

Specifications:

  •  Power Supply: AC100-240V, 50/60Hz
  •  Output: 15W
  •  R module: Mitsubishi 638nm
  •  G module: Nichia 520nm
  •  B module: Osram 445nm
  •  Scanning System: ±30°, 40K
  •  Beam Size: 5 ×6.5mm
  •  Beam Divergence: <1.1mrad
  •  Analogue modulation: 100K, Analog/TTL
  •  IP level: IP65
  •  Cooling System: TEC
  •  Work Temp.: -20-40℃
  •  Weight: 14kg
  •  Dimension: 407×280×180mm
  •  System Control: Control: Ethernet, DMX, ILDA, Auto, SD card, Sound,FB4(optional)
  •  Compliant with: EN60825-1:2014+A11:2021
  •  Safety Features: Safety Switch Key, Remote Emergency Stop System (can be connected in daisy chain), scan-fail safety.
